I managed to get my hands on a copy of Fujimi's excellent 356 C.
This kit, which was apparently designed for the European market, has a very high level of detail compared to some of the curbside kits of Japanese sedans promulgated by Fujimi, Aoshima, Hasegawa and others.
I got started on the motor, which was one of the 4-cam, roller-bearing devices cooked up by Ernst Fuhrmann. The kit even includes a molding of the crank, rods and pistons, which I will paint and display rather than bury inside the crankcase. Interestingly it shows that the cylinders are offset by half the bore, and each rod has its own crank journal; like the 911 motor, rods are not paired on a journal. Unlike the 911, which has a full complement of 7 main bearings (plus an 8th in front of the timing chains), this one appears to have only three.
It will look good next to the other Porsche twin-plug heads in the collection (908 and 917). The 356 motor used two 4-cylinder distributors; I've got a pair of 4-cylinder distributors from Morgan Automotive Detail which should work well.
What a complex little motor! At 1:1 it was said to require 120 hours to assemble, with at least 8 hours just to set the timing of the 4 cams and two distributors. At 1/24, Fujimi has provided lots of very fine detail, and a few pictures will illustrate this.
The basic engine block, barrels and heads, with carbs, fan and belt drive, is about 30 parts.
By the way the fan shroud has to go on before the carbs ... just because I did it backwards doesn't mean that is the right way.
Adding to the complexity, it appears that the distributor drive housing goes on over the belt drive, so changing a belt means removing the distributors ... is this offset between the crank and generator/fan a last throwback to the lowly Beetle? There is not much else in common between the two besides the flat-four layout.
Decals meant to mimic the wire mesh on the air filters were dry and cracked. Alternate plans may be needed. Perhaps the built-up crank will push me to make a small diorama with a garage bench and some tools.
I hate closeups like this, because they show every little flaw. But the screwups, like the broken fan belt or the visible seam running down the side of the cylinder heads and barrels, are essentially invisible to the naked eye. The picture does show, however, the shaft drive from the exhaust cam to the inlet cam; separately there is a shaft angling horizontally out from the bottom of the crankcase to the exhaust cam. All of this was joined by bevel gears, and setting the timing involved some complex approach to rotating the bevel gears relative to their drive shafts in minute amounts. All this, of course, after assembling the Hirth roller bearing crank.
I am now letting the glue for the distributor caps, from Morgan Automotive Detail, set on the distributor bodies from the Fujimi kit. The wiring looks complex but there are lots of pictures online illustrating the routing.
Four cams, two distributors and eight spark plugs, all to extract 130 hp from a two litre motor with four cylinders.
Realising that some builders may want to display the motor, the kit comes with a motor stand. In order to make this realistic, the transmission (which stays in the car) has a clutch throw-out bearing and fork, and the engine comes with a flywheel and ring gear. No clutch, however ...
The kit will make the 356 B or C; I'll go for the C, which had 4-wheel disc brakes, and save the VW-style rims and drum brakes for the spare parts bin.
A blog devoted to sharing my adventures building 1/24 (and 1/25) scale model cars, whether styrene or resin. Enjoy!
Wednesday, January 31, 2018
BRE 240 Z: Compete, finally (#2 for 2018)
The home renovations are ongoing and I am stuck in a small rental unit where it's not really nice to be spray painting, especially in the dead of winter, because there is no ventilation and because there is a bunch of neighbours. So the LN 8000 is on hold as I wait to get back into my home with the paint booth and exhaust fan. Meanwhile I have been scrounging for things to do.
Last described in May 2017, the BRE 240 Z and its partner, the 510, have been ongoing since December 2015. The 510 is complete but the 240 Z was missing final assembly and a repair for a snapped rear hub. So no spray painting was required to complete this, the second kit for 2018.
A few challenges for others to be aware of: the stance is too high, the copyright molded into the trunk floor is visible through the rear window, and the hood hinges are fussy.
Still missing: the front bumper which is either buried in my spare parts boxes in storage, or was not included in the kit.
Like the 510, the 240 Z is a very detailed kit but with some fussy bits. Beginners will find them a challenge but they will reward a patient, experienced builder. The oil filter plumbing is a nice touch and it makes sense to wire the motors, but some of the body panels feature odd fits, and the Z's hood hinge setup reminds me of the extraordinarily complex linkage for the rear deck in the Revell 904.
Nonetheless these are excellent kits that replicate an important part of US racing history. I suspect the LN 8000 will wind up with red and white livery, and maybe with a number 46 on the doors. Stay tuned!
Last described in May 2017, the BRE 240 Z and its partner, the 510, have been ongoing since December 2015. The 510 is complete but the 240 Z was missing final assembly and a repair for a snapped rear hub. So no spray painting was required to complete this, the second kit for 2018.
A few challenges for others to be aware of: the stance is too high, the copyright molded into the trunk floor is visible through the rear window, and the hood hinges are fussy.
Still missing: the front bumper which is either buried in my spare parts boxes in storage, or was not included in the kit.
Like the 510, the 240 Z is a very detailed kit but with some fussy bits. Beginners will find them a challenge but they will reward a patient, experienced builder. The oil filter plumbing is a nice touch and it makes sense to wire the motors, but some of the body panels feature odd fits, and the Z's hood hinge setup reminds me of the extraordinarily complex linkage for the rear deck in the Revell 904.
Nonetheless these are excellent kits that replicate an important part of US racing history. I suspect the LN 8000 will wind up with red and white livery, and maybe with a number 46 on the doors. Stay tuned!
Labels:
1:24,
Stock builds
Monday, January 29, 2018
LN 8000 Crew Cab: More second car deck progress
Moving right along with support structures for the upper deck.
In front, I decided to glue sections of H-beam to the firewall and assume the structure continues through the cab above the transmission, with supporting structure down to the truck frame. The alternative was going to be a structure ahead of the front bumper, but this was going to have to be wide enough to allow the hood to tilt open, and would be wider than any other portion of the vehicle.
So the structure is just ahead of the front door hinges, which required notching the fenders in the body as well as in the hood. A triangular brace is still missing.
In back, a pair of braces are in place. An additional brace may be needed. This is all built up from 0.250" H-beam, 6" at scale.
On the upper deck, I am also missing a railing and structure around the tire rack, and will also look for some form of diamond plate deck.
I am pleased with the scratch building so far. It all lines up and the mitred cuts are all pretty decent. Stay tuned!
In front, I decided to glue sections of H-beam to the firewall and assume the structure continues through the cab above the transmission, with supporting structure down to the truck frame. The alternative was going to be a structure ahead of the front bumper, but this was going to have to be wide enough to allow the hood to tilt open, and would be wider than any other portion of the vehicle.
So the structure is just ahead of the front door hinges, which required notching the fenders in the body as well as in the hood. A triangular brace is still missing.
In back, a pair of braces are in place. An additional brace may be needed. This is all built up from 0.250" H-beam, 6" at scale.
On the upper deck, I am also missing a railing and structure around the tire rack, and will also look for some form of diamond plate deck.
I am pleased with the scratch building so far. It all lines up and the mitred cuts are all pretty decent. Stay tuned!
Labels:
1:24,
Hot rods & kitbashes
Sunday, January 28, 2018
LN 8000 Crew Cab: second car deck progress
The lower car deck has been shortened to make room for the crew cab, mainly by cutting out most of the vertical storage lockers.
The upper deck is more or less complete. Next will be some struts to support the upper deck at the rear, through the lower deck, and at the front, through the bumper. This structure will need to be wide enough to allow the hood to tilt.
The bottle of Micro Kristal Klear is to balance things, as the upper deck is not glued in yet.
Stay tuned! As I am still renting it may be difficult to get any painting done beyond the dashboard and interior which will largely be brush work.
The upper deck is more or less complete. Next will be some struts to support the upper deck at the rear, through the lower deck, and at the front, through the bumper. This structure will need to be wide enough to allow the hood to tilt.
The bottle of Micro Kristal Klear is to balance things, as the upper deck is not glued in yet.
Stay tuned! As I am still renting it may be difficult to get any painting done beyond the dashboard and interior which will largely be brush work.
Labels:
1:24,
Hot rods & kitbashes
Saturday, January 27, 2018
LN 8000 Crew Cab: Mocking up the second car deck

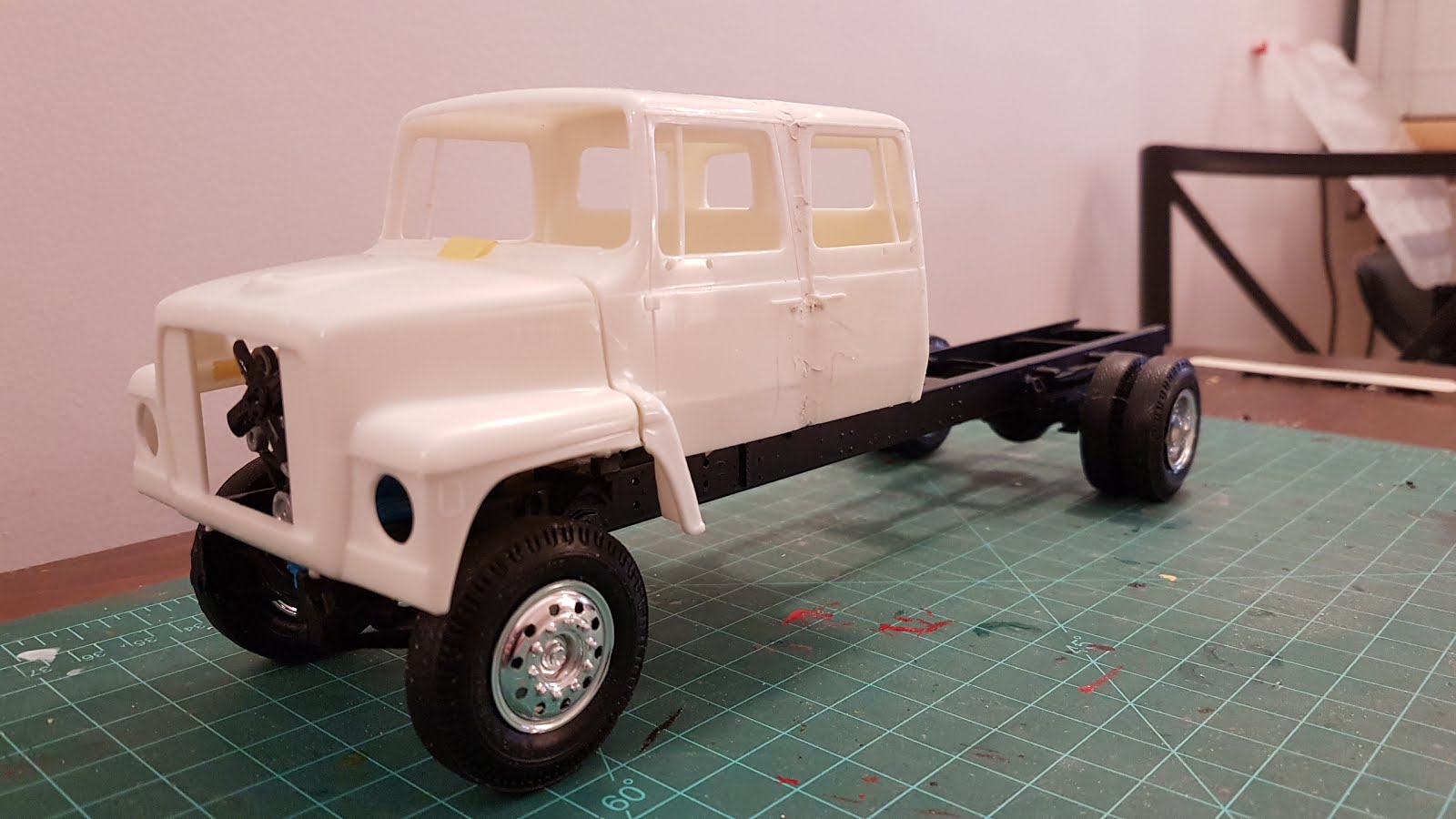

As mentioned in an earlier post, I had two concerns about this kit: any decent racing team will include two or more cars, and have a team of more than two people. The crew cab fixes the second problem.
To allow for a second car, the upper car deck structure has been roughed out, using the spare tire rack from the kit.
As I have chosen to keep the wheelbase intact, the extra length of the crew cab will require shortening the vertical lockers behind the cab. The upper deck will be supported by a structure within what is left of the vertical lockers, and by beams reaching down to the front bumper either side of the hood.
The pictures show that my paper plan was pretty close but that the upper deck needs to be raised slightly. This is because the cab sits higher on the chassis than I had assumed. This does not seem to be related to any mistakes on my part in assembling the cab and interior, or the cab mounts to the chassis. Nonetheless there seems to be a lot of space showing between the cab floor and the chassis rails.
The drawing also shows a potential approach to tilting the upper platform for getting the car on and off the upper deck. This is still undecided. Stay tuned!
